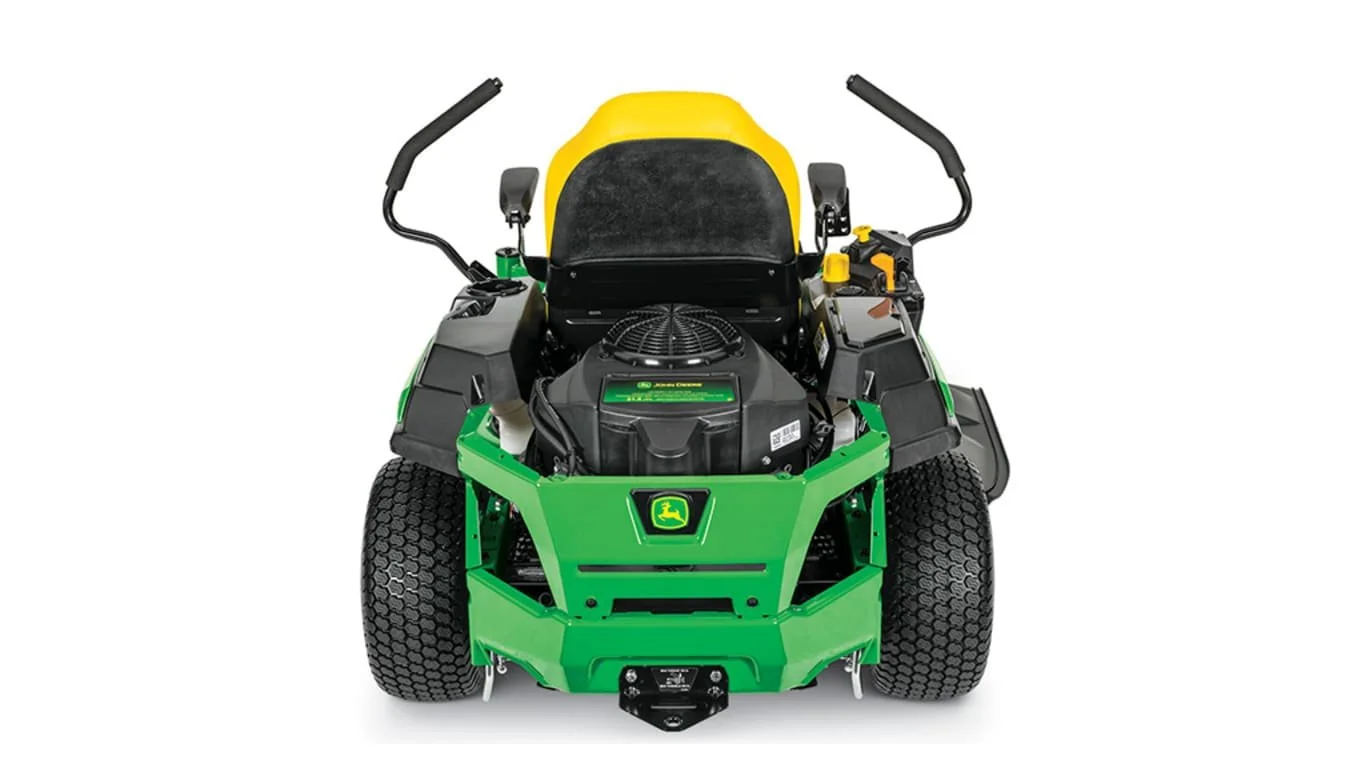

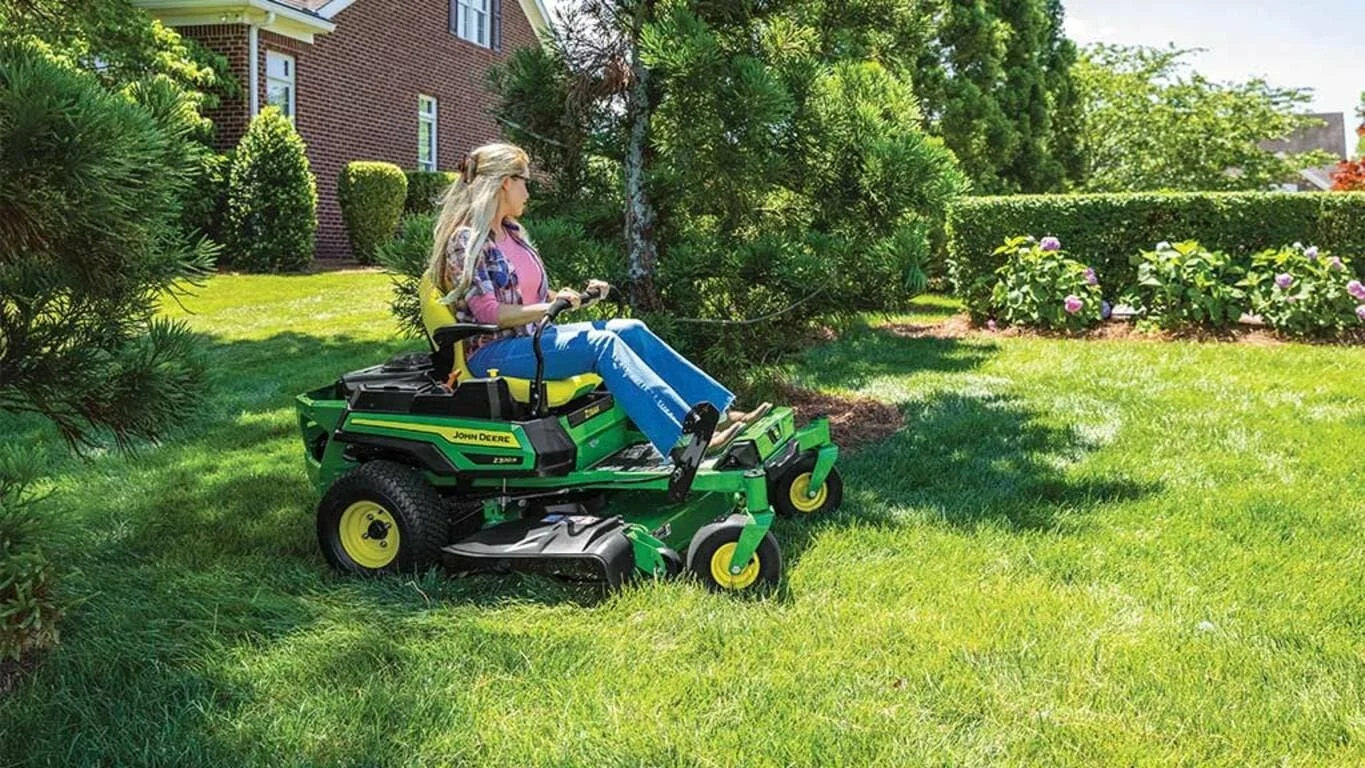

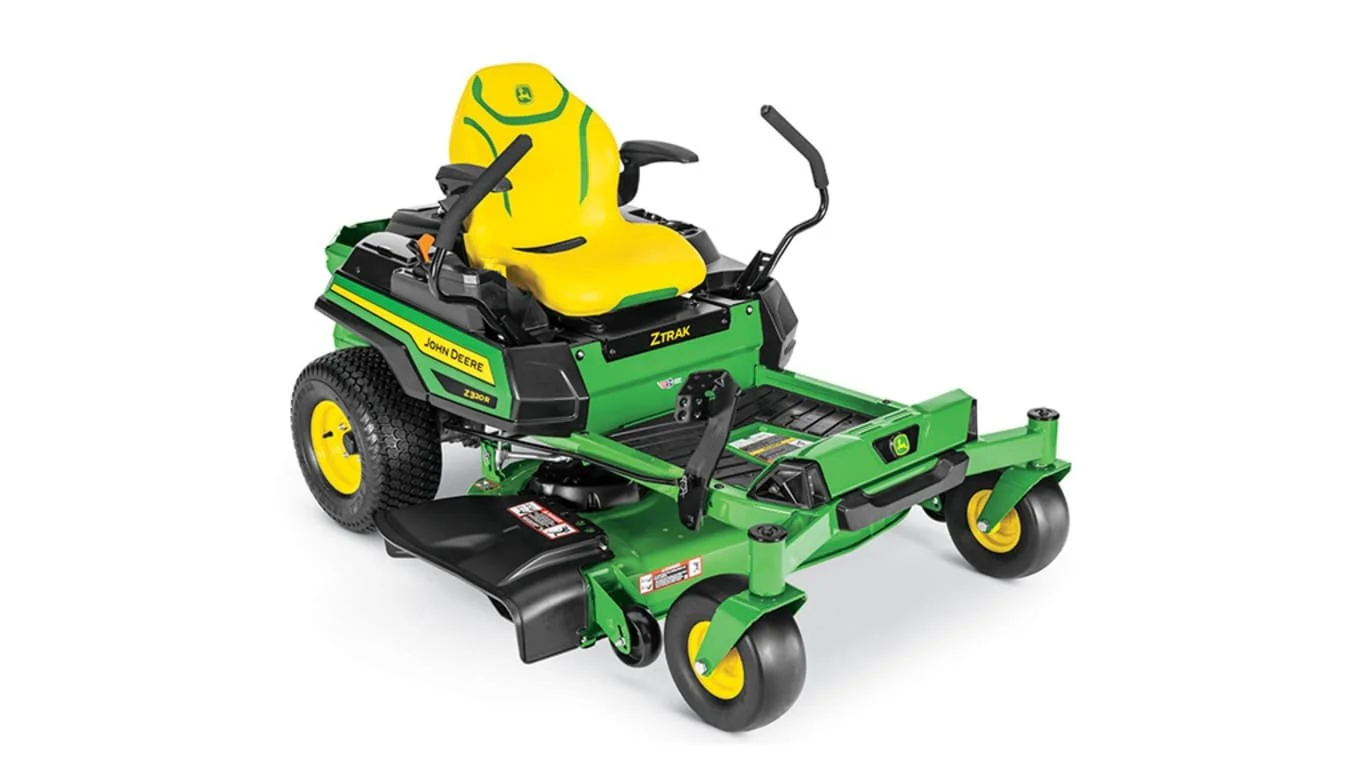

Z20R ZTrak™ Mower with 42-in. Decks.

Description

Engine power 21.5 hp 16.0 kW Engine model number FR651V Forward speed 0-7 mph 0-11.3 km/h Front caster tires 11×6-5 Drive tires 18×8.5-8 Seat back height High back with armrests, 20 in. 51 cm Width of cut Accel Deep™ mower deck, 42 in. 107 cm Mulching system Optional MulchControl™ attachment Warranty 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) Key Specs Power 21.5 hp 16.0 kW Model number FR651V Displacement 44.3 cu in. 726 cc Cylinders V-twin Lubrication Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L Type Overhead valve Battery 12 V 300 CCA Choke/speed control Separate levers Cooling method Air Fuel tank capacity 3.0 U.S. gal. 11.4 L Fuel gauge Translucent tank Engine Dual hydros Hydro-Gear EZT-C with 1-in. (2.5-cm) axles Drive train Forward speed 0-7 mph 0-11.3 km/h Reverse speed 0-3.5 mph 0-5.6 km/h Speed and direction control Twin levers Control adjustment 3 height, 11 positions Travel speed Frame Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing Primer/paint E-coat/powder Front caster tires 11×6-5 Front caster bearings Sealed ball bearings Drive tires 18×8.5-8 Hour meter Yes Service interval decal Yes Storage compartment Standard covered Cup holder Yes Maximum towing capacity 250 lb 113 kg Chassis Seat back height High back with armrests, 20 in. 51 cm Fore-aft adjustment 2.9 in. 7 cm Seat suspension Two springs Seat Type Foot lift Mower cut height 1.25-4.5 in. 3-11 cm Cut height increments 0.25 in. 0.64 cm Preset cut height Yes Lift system Width of cut Accel Deep™ mower deck, 42 in. 107 cm Type Side discharge Mower deck material 12 gauge 0.105 in. 2.7 mm Mower drive system V-belt Mower deck Type Electric, 105 lb-ft 142 Nm Drive V-belt PTO Wheelbase 49.4 in. 1255 mm Overall length 75.4 in. 1915 mm W
